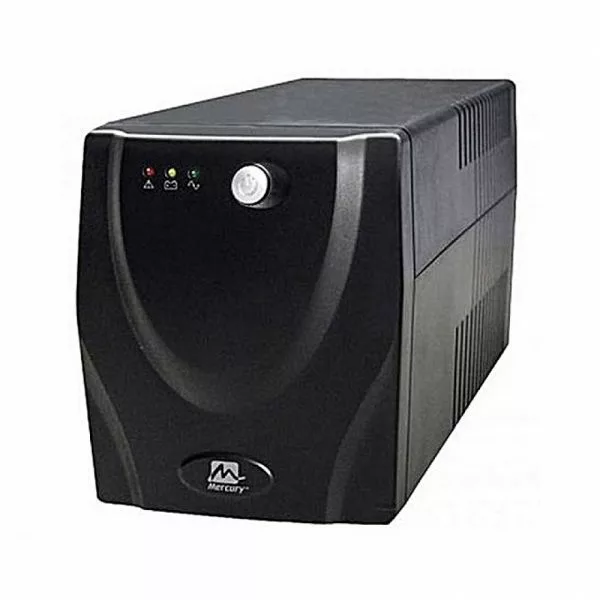

Onduleur Mercury 1200 VA

389.00 د.ت

Cet onduleur fournit une alimentation par batterie temporaire, en cas de panne de courant
Analyse des pannes de batteries avec alerte précoce, permettant ainsi d’effectuer à temps une maintenance préventive. En plus de cela, cet onduleur est un régulateur de tension.

Onduleur Mercury 1200 VA

Caractéristiques techniques Mercury 1200 VA

• Auto restart
• Built-in AVR
• Surge protection
• Dataline protection
• Overload protection
• Overcharge protection
• Short circuit protection
• Intelligent battery management
• Battery deep discharge protection

Input voltage	220VAC
Input frequency	50Hz
Input phase	Single phase
Input socket	With Fuse
Cold Start (0 to 100% load)	Press the ON/OFF switch
Input range (220V)	140-300
Rating output (VA).	1200VA
Rating output (W).	720W
Waveform	Battery mode(simulated sine wave),AC mode(sine wave)
Power factor	0.6
Rating voltage	220V
Output range	220Vac-7% to +15% in battery mode
Rear Output Socket	4 x Universal – Battery backup
Transfer time	TYPICAL4-8ms
Communication Interface	optional RS232/RJ11
Rating frequency	50Hz
Line-mode	Synchronize with the Utility
Battery mode	50 HzÂ±1Hz
Line Mode	FUSE& firmware protection
Battery Mode	Software protection controlled by firmware
Line Mode	110%±5%; Go to fault mode after 5 minutes, 120%±5%; Go to fault mode immediately.
Battery Mode	110%±5%; Shutdown after 5 seconds, 120%±5%, Shutdown immediately
Rating	2 X 12V/7.5AH (Actual rating 7AH)
Backup time – Typical	20 to 30 mins (depending on load)
Charge current	About 1A at normal mode.
Over charge protection	29VÂ±0.2V stop charging, 27.4+/-0.2V recharge
Weight	8.6+/-0.3 Kg
Dimensions per unit packaging	395x205x258mm
Packsize per Master carton	2
Dimensions per Master carton	410x430x273mm
