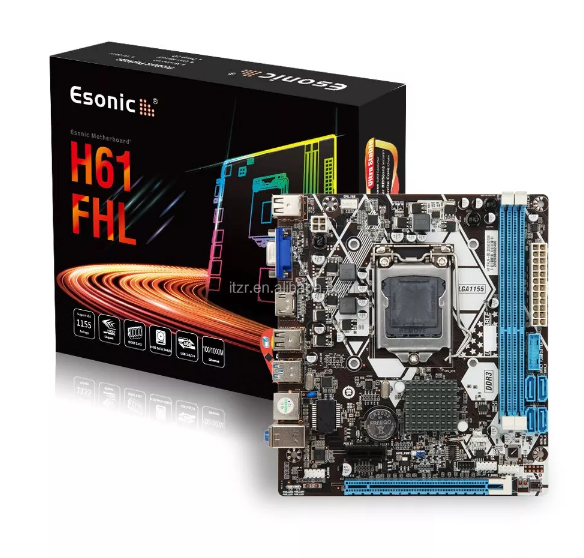

CARTE MERE ESONIC H61

Intel® Socket 1155 Core™ i7/Core™ i5/Core™ i3 Processors

Supports Intel® Dynamic Speed Technology

Supports Intel® 32 nm CPU

Chipset

Intel® H61(B3)

Memory

Support Dual channel DDR3 1333/1066 SDRAM (8GB Max)

2 * DDR3 DIMMs (240 pin/ 1.5V)

Slots

• 1 * PCI Express x16 Slot
• 1 * PCI Express x1 Slot

Storage

•  4* Serial ATA 2.0 devices

Internal I/O Connectors

• 1 * 24-pin ATX Power Connetor
• 1 * 4-pin ATX 12V Power Connetor
• 2 * USB connector support additional 4 USB ports
•  1 * LPC_DEBUG connector
• 1 * Front panel audio connector
• 1 * System Panel connector

Back Panel I/O Ports

• 1 * PS/2 Mouse/Keyboard
• 1 * VGA
• 1 * COM
• 4 * USB 2.0 / 1.1
• 1 * RJ45(LAN) Port
• 1 * 3 Audio jacks

BIOS

EFI BIOS

LAN

Onboard Realtek 8105E 1000M LAN, Compliance with PCI 2.2

Audio
